Denim Apparel 3D Embroidery Solution: Heavyweight Denim Jacket Toothbrush Embroidery Case Study

[Solution Summary] For large back graphics on heavy denim jackets, toothbrush embroidery (vertical-pile / flocking embroidery) with zone-set pile height (typically 2.0–3.5 mm) is the recommended route. Density-compensated digitizing for high-tension denim plus back-side hot-melt root locking solves wrinkling on stiff fabric, fiber loss and blurred edges on large solid areas; the pile resists shedding after washing. Dobest operates 15 dedicated toothbrush embroidery machines, MOQ 300 pcs, sampling in 24–48 hours.

1. Why 3D embroidery is harder on a denim jacket

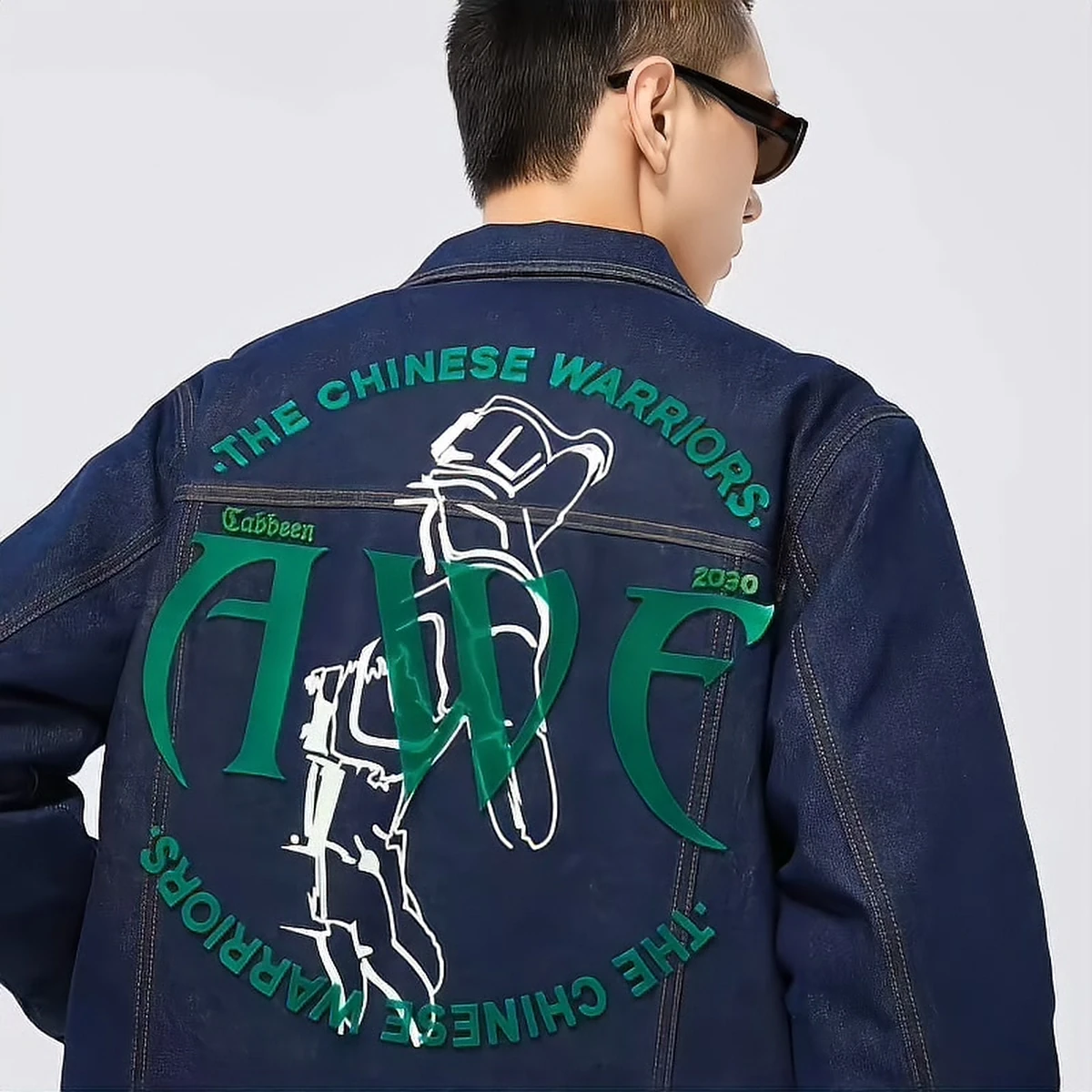

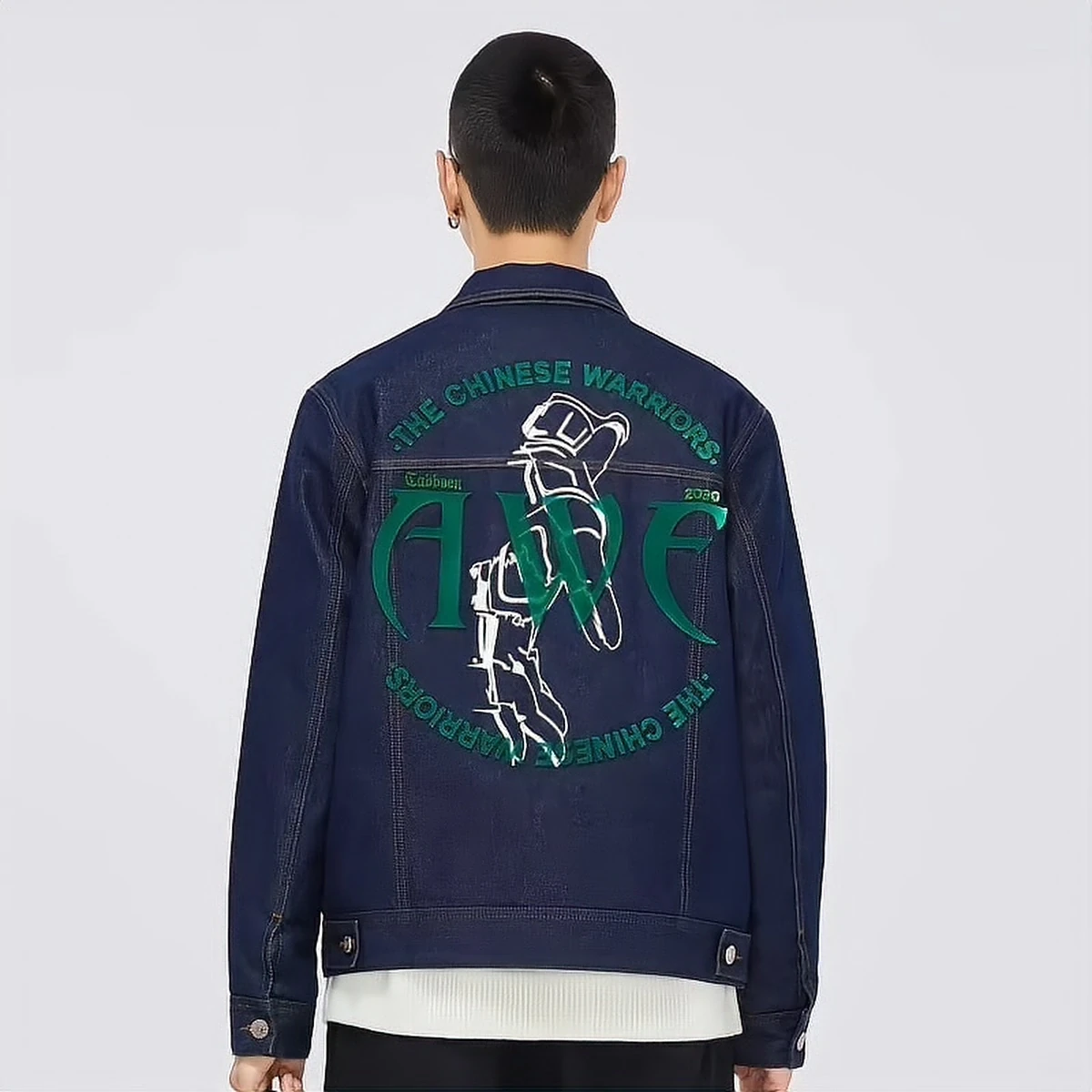

Denim is one of the toughest fabrics in apparel — heavy, crisp and coarsely textured. Planting a set of 3D embroidery on the back of denim and having it stand up, survive washing and stay consistent batch after batch demands more of the equipment and the punching skills than embroidering the front of a knitted hoodie. The back embroidery on this Cabbeen jacket takes “THE CHINESE WARRIORS” as its theme, pairing large 3D lettering with a white figure graphic to create a whole field of touchable pile on dark blue denim.

2. Four challenges of toothbrush embroidery on denim

① A thick, crisp base with different needle penetration. Denim is thicker and higher in tension than ordinary knit, so the machine's thread tension and stitch density must be re-matched, or the motif will wrinkle, bulge or drift.

② Large blocks interleaved with fine lines, so height differences must be set zone by zone. This design has both full, large letter blocks and the fine outlining of a white figure graphic, and the 3D and flat areas must be separated by setting pile height by zone so it does not blur into one mass.

③ Batch consistency. A bestseller can run to tens of thousands of pieces, so letter pile height, density and hand feel must be identical batch after batch — and must not “loosen” later in the run.

④ Wear and wash resistance. Denim is worn frequently, so repeated friction and washing are the real test — shedding, fraying edges and lifting rims are the things to fear.

3. How toothbrush embroidery makes the motif stand up

There are several names for this kind of 3D embroidery — flocking, turf, vertical pile and tufting embroidery — but they all describe the same effect: instead of lying flat on the fabric as in ordinary flat embroidery, the thread stands up vertically like toothbrush bristles to form a surface with real thickness that you can touch. To understand the technique systematically, start with our toothbrush embroidery guide.

Dobest's toothbrush embroidery runs in five steps: density-compensated punching → single-sided upright machine embroidery → heat-locking at the back → CNC pile shearing → dust removal, setting and full inspection. Heat-locking at the back is the key to a shed-resistant finish — the thread roots are heat-fixed on the reverse rather than glued on the face, so repeated friction and washing are unlikely to dislodge them.

4. Result and quality

The finished pile is dimensional and soft to the touch; pile height from 1.0–10.0mm can be varied zone by zone across the motif (2.0–3.5mm is common); letter edges are clean and the figure graphic is clearly layered. Internal quality control keeps the defect rate below 1% (internal quality-control figure, not third-party testing; specific criteria are confirmed on the approved sample), which holds up on bulk orders too.

5. Why this piece can become a classic

“THE CHINESE WARRIORS” embroiders a piece of cultural storytelling into the fabric — not a simple printed graphic but a dimensional technique you can touch. This is exactly what Dobest has always stressed: focusing on the research, development and production customisation of high-end embroidery elements, adding colour to fashion and making every product a classic. When a jacket sells well, the craft's contribution deserves much of the credit.

6. What we can take on

From garment fronts and denim backs to 3D motifs on hoodies and bags, Dobest can take the work on; see our toothbrush embroidery range for more options. MOQ 300 pieces; up to 3 simple samples free, complex samples charged and deductible against the order once the 300-piece MOQ is reached; sampling in 24–48 hours (3–4 working days for complex or combined techniques); bulk lead times normally 5–10 working days subject to production scheduling, with rush orders scheduled first.

We can meet customers on site in Dongguan, Shenzhen, Foshan (including Shunde), Zhongshan, Guangzhou, Zhuhai, Huizhou and Jiangmen; in Guangzhou city and its surroundings (Haizhu, Liwan, Tianhe, Baiyun, Huangpu, Panyu, Huadu, Nansha, Conghua, Zengcheng) and in Dongguan itself (Humen, Houjie, Chang'an, Dalang, Changping, Dalingshan, Shipai, Chashan, Tangxia, Liaobu, Dongcheng, Nancheng, Wanjiang and other towns), we can usually arrive within half a day. Clients outside the region and overseas can send samples by courier and get them returned.

If you need 3D embroidery, contact us. Dongguan Dobest Industrial Co., Ltd. (Dobest): phone / WeChat 13712297700, website dobest.hk.

Disclaimer: The cases shown on this page are based on logos or design files provided by our clients, for whom we carried out computerised embroidery processing or produced embroidered patches. Brand names mentioned are used solely to describe the category and technical direction of the work and do not imply any official partnership or authorisation with those brands.
